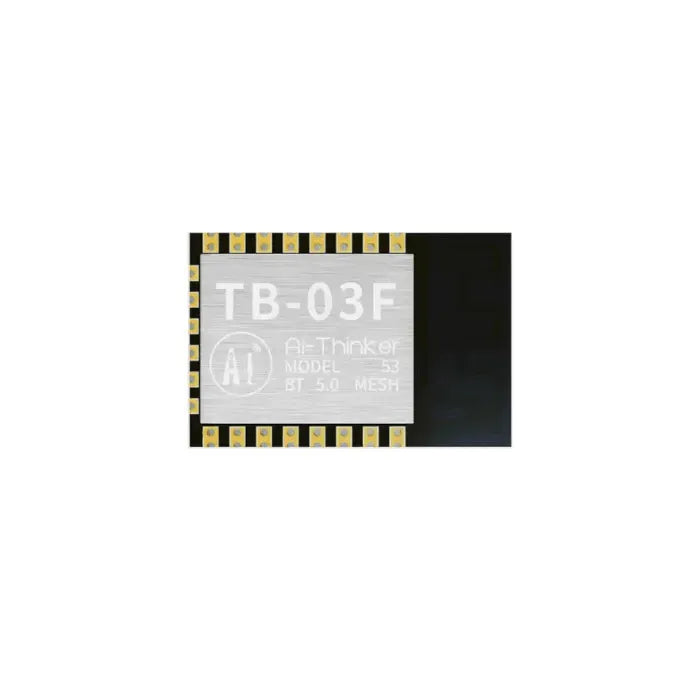

Ai-Thinker TB-03F BLE Module

Regular price
€1,90
Sale price
€1,90
Regular price
€1,90
Sold out
Unit price
Quantity must be 1 or more

The TB-03F is a Bluetooth 5.0 module optimized for smart lighting control and other IoT applications. With mesh networking, low power consumption, and support for AT transmission firmware, it is designed for efficient and seamless operation in modern connected environments. Its small size and multiple interface options make it an excellent choice for space-constrained designs.

Features

  • Bluetooth Mesh Networking: Enables seamless communication between devices with low latency and high efficiency.
  • AT Transmission Firmware: Simplifies integration and control across platforms.
  • Secondary Development Support: Provides an SDK for flexible customization and development.
  • 6 PWM Output Channels: Frequency of 1 kHz with an adjustable range of 5% ~ 100%.
  • Low Power Consumption: Deep sleep current as low as 0.4 μA, with multiple sleep modes for energy efficiency.
  • Compact Design: Small size, making it ideal for applications with space constraints.

Applications

  • Smart Lighting Control: Perfect for adjusting brightness and color temperature in smart lighting systems.
  • IoT Devices: Designed for use in a wide range of IoT applications requiring Bluetooth mesh networking.
  • Home Automation: Enables seamless integration into smart home systems.
  • Consumer Electronics: Suitable for devices requiring low power and reliable Bluetooth connectivity.

Specifications

Parameter Details
Model Number TB-03F
Brand Ai-Thinker
Origin Mainland China
Interface Type GPIO / PWM / SPI / ADC / I2S
Antenna Type PCB onboard
Bluetooth Version Other
Color Category TB-03F V0.9 version AT module, TB-03F V0.8 version AT module, TB-03F AT Mesh
Application Scenario Smart Lighting
Dimensions 24 × 16 × 3 mm
Modulation Mode GFSK
Baud Rate 0 ~ 64,000 bps
Transmission Speed 64 Kbps
Effective Communication Distance 150 m

Download

TB-03F
