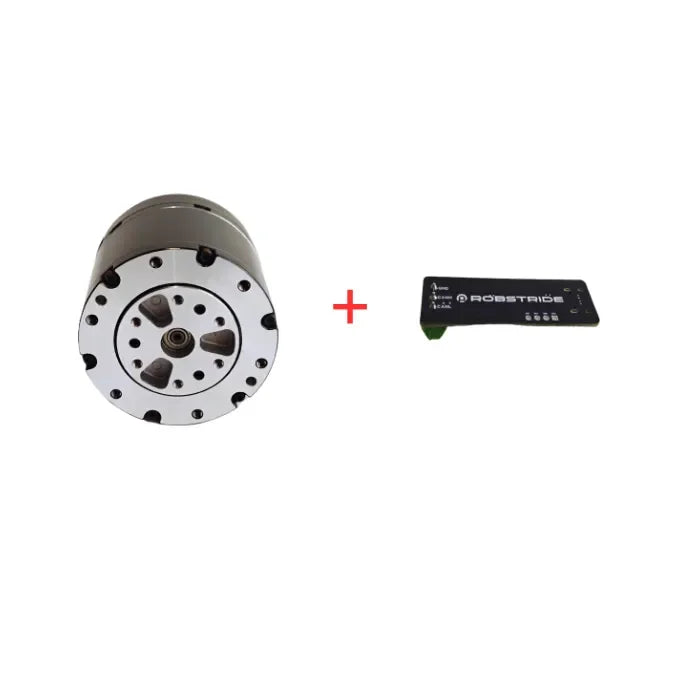

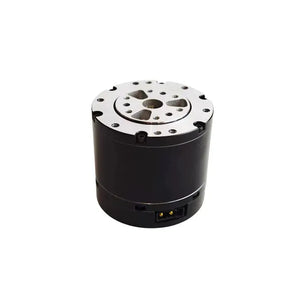

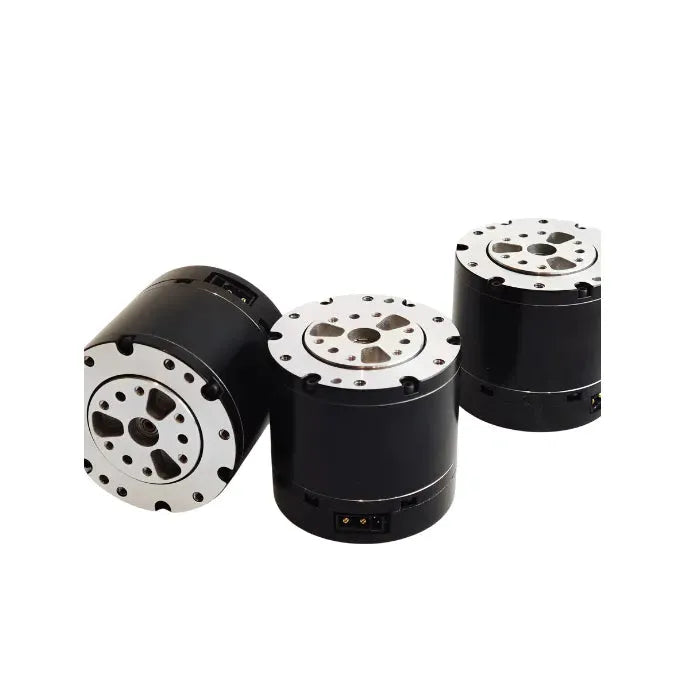

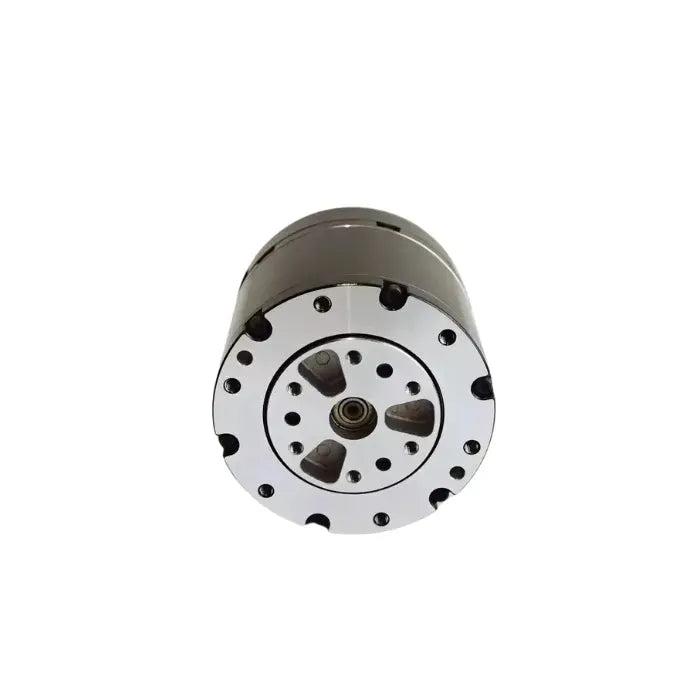

The ROBSTRIDE00 QDD 14N·m integrated joint motor module is a lightweight, high-performance integrated joint motor module designed for robotic joints and automation systems. Equipped with a permanent magnet excitation system and dual encoders, it delivers precise motion control, strong torque output, and a compact, lightweight structure—making it an excellent choice for intelligent automation.
Key Features
-
Compact and fully integrated design
-
Dual encoders for precise motion control
-
Strong torque output for complex tasks
-
Low noise and heat for enhanced system stability
Specifications
| Specification | Value |
|---|---|
| Model | RSQDD-PG-05-14-01A |
| Brand | other / others |
| Rated Torque | 5 N·m |
| Peak Torque | 14 N·m (estimated) |
| Encoder Type | Dual encoders |
| Gear Material | Alloy steel |
| Excitation Method | Permanent magnet |
| Shaft End Type | With threaded hole |
| Mounting Method | Flange mounting |
| Rated Current | 4.7 A |
| Rated Voltage | 48 V |
| Rated Power | 140 W |
| Rated Speed | 260 rpm |
| Weight | 0.31 kg |
| Operating Temp | ≤ 70°C |
| Origin | Mainland China |
Application Scenarios
-
Robotic joints
-
Industrial control systems
-
🛠Automation applications
