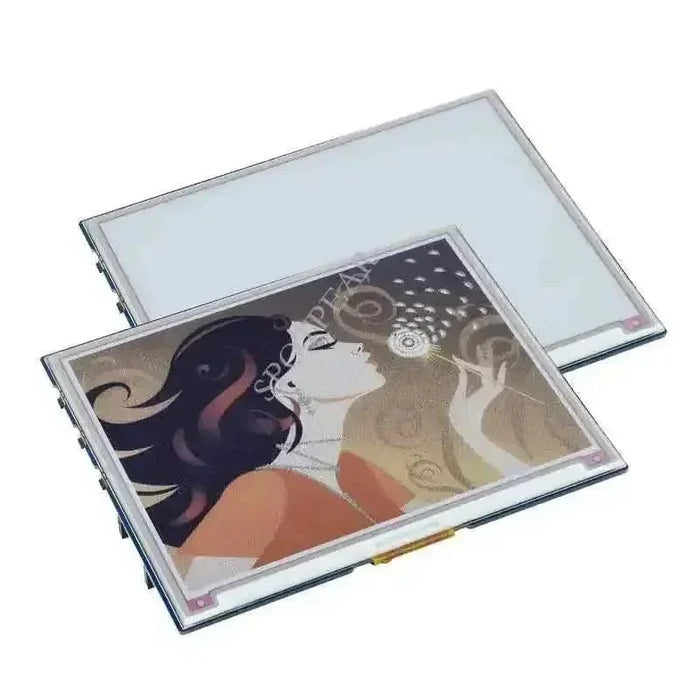

5.65" E-Paper Module For Pico
Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity
Ideal for price tags, shelf labels, industrial instruments...
.
Features At A Glance
.
- Adopt Advanced Color ePaper (ACeP) technology to support the display of seven colors
- No backlight, and the last screen display content can be kept for a long time after the power off
- Very low power consumption, basically only consumes power when refreshing
- Use SPI control to ensure that it does not occupy too many interface pin resources
- Onboard-level conversion chip, compatible with 3.3V and 5V MCU interfaces
- Provide complete supporting information manuals (sample programs such as Raspberry Pi Pico C/C++ and MicroPython)
.
Specifications
.
| OPERATING VOLTAGE | 3.3V/5V | DISPLAY COLOR | 7 colors |
| RESOLUTION | 600 × 448pixels | GREYSCALE | 2 |
| INTERFACE | 3-wire SPI、4-wire SPI | VIEWING ANGLE | >170° |
| DIMENSIONS | 128 × 101.5mm | FULL REFRESH TIME | <35s |
| DISPLAY SIZE | 114.9 × 85.8mm | REFRESH POWER | 50mW(typ.) |
| DOT PITCH | 0.1915 × 0.1915mm | SLEEP CURRENT | <0.01uA (almost none) |
.
Raspberry Pi Pico Header Compatibility
Suitable For Raspberry Pi Pico Series Motherboards, On-Board Headers, Can Be Directly Connected
