ePaper Display's Basic function
- Refresh Method: Full refresh for 2s、Partial refresh for 0.3s、4 grayscale refresh for 2s
- Display direction: Horizontal or vertical
ePaper Display's Basic parameters

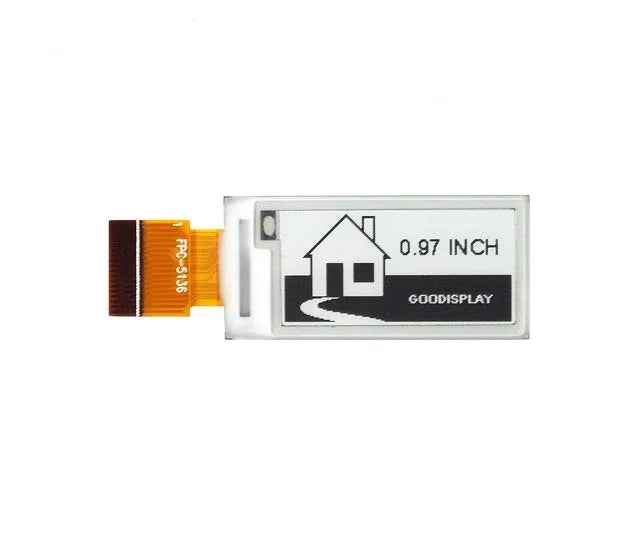

- Product size: 0.97 inch
- Resolution:184x88
- PPI: 210.27
- Color: Black and White
- Driver IC:SSD1680
- Interface: SPI (18Pin)
- Operating voltage: 3.3V
- Operating temperature: 0-50 ℃
- Optional customized: cover plate and shell
ePaper Display's Main features
- Display feature: Bistable display (retains the current content after a power outage)
- Display mode: Pure reflection
- Viewing angle: Wide viewing angle exceeding 170 degrees
- Surface Treatment: Hard-coated for anti-glare effects
- Energy conservation: No power consumption when not refreshing the screen
- Eye Protection: No blue light emission, zero radiation
Product Application
- Shelf tags
- Smart tags
- Wearable devices
- Smart home applications
- Industrial instruments
- Smart card
