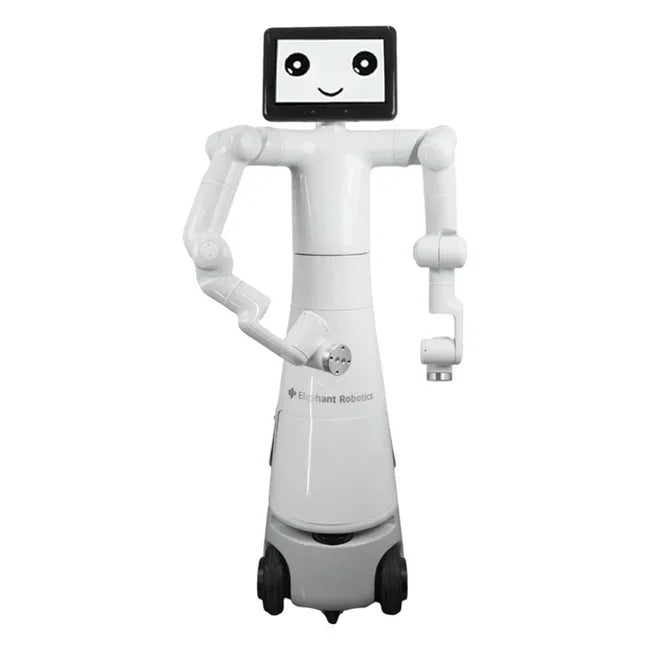

🌐 Product Introduction: Elephant Robotics Mercury X1 Universal Wheeled Humanoid Robot
The Mercury X1 is a universal wheeled humanoid robot developed by Elephant Robotics. It integrates high-performance robotic arms with a mobile wheeled base, enabling advanced mobility, dexterity, and intelligent interaction. Designed for education, research, commercial, and entertainment applications, the Mercury X1 represents a new generation of embodied intelligence.
🔧Features
-
Universal Wheeled Platform:
-
Equipped with lidar, ultrasonic radar, and visual guidance systems.
-
Provides reliable navigation and autonomous mobility.
-
Motion endurance of up to 8 hours, ensuring long operational cycles.
-
-
High-Performance Arms:
-
Powered by “Power-Spring” harmonic joint modules with integrated brakes and hollow cable routing.
-
Maximum torque output: 20 Nm.
-
Lightweight carbon fiber shell for optimized strength and efficiency.
-
-
NVIDIA Jetson Orin Nano (8GB) Control Module:
-
Delivers 40 TOPS AI performance, nearly double the previous generation.
-
Supports advanced perception, navigation, and planning algorithms.
-
Enhanced connectivity with CAN FD and multiple UART channels.
-
-
Multi-Sensor Fusion: Combines vision, laser, and voice sensors for three-dimensional machine intelligence.
-
Open-Source Ecosystem: Supports mainstream programming languages and simulation software, including ROS, Moveit, Gazebo, Mujoco.
POWER SPRING” Robot Joint
All Mercury Robots now feature Elephant Robotics' newly developed Power-Spring" harmonic module. This innovative modular design comes standard with brakes and hollow cable routing, offering high precision, high inertia, and low weight. It delivers a maximum output torque of 20 Nm. The carbon fiber robotic arm shell further reduces overall weight and optimizes power performance.
NVIDIA Computing Power
Mercury B1 and X1 humanoid robots now feature the NVIDIA Jetson Orin Nano (8GB core) as their main control module. This upgrade significantly boosts AI performance to 40 TOPS, nearly double the previous 21 TOPS, thanks to its 7nm process and Ampere architecture. This powers advanced perception, navigation, and planning algorithms. The Orin Nano offers greater computational flexibility with versatile Tensor Cores for complex, multi-modal AI tasks. Its CAN FD and more UART channels also improve robot motion control and industrial connectivity, unlocking endless possibilities for embodied intelligence.
Wheeled Humanoid Robot
Mercury Robot X1 is equipped with a high-efficiency wheeled mobile base for its high-performance arms. The mobile platform includes lidar, ultrasonic radar and visual guidance systems. The entire machine has a motion endurance of up to 8 hours, which can truly complete reliable mobile operations.
Diverse Software Ecosystem
The Mercury robot series adheres to the open source tradition of Elephant software and supports a rich software ecosystem and mainstream programming languages. It also supports mainstream simulation software including ROS, Moveit, Gazebo and Mujoco to improve the autonomous learning and rapid iteration capabilities of machine intelligence.
Support secondary development
Pymycobot is a general-purpose Python control library designed to support several elephant robots The robot provides a simple and flexible interface to facilitate developers to enter the robot Line control.
C++ API - Mercury
The Mercury API is a C++ control interface designed specifically for the Mercury robot. Simple and easy to use, it provides flexible control of robot joints, attitude and actuators, helping developers quickly implement different systems Robot-like applications.
7 Integrated Algorithms To Create
For the first time, the Mercury robot product series integrates seven intelligent algorithms to overall improve the kinematics and dynamics performance of the robotic arm, suppress vibration, and ensure smooth coordination of both arms. Deep integration with vision, laser and voice sensors creates three-dimensional machine intelligence in an all-round way with the support of LLM.
Unleash The Power Of Mercury Effortlessly
myPanel
The built-in "myPanel" of the Mercury A1 robotic arm is paired with a two-inch touch screen to enable rapid teaching, programming, deployment and debugging of the robotic arm without any additional hardware equipment.
myBlockly
The new myBlockly innovatively develops a dual editing column function, which can be used to quickly program the left and right arms with preset shortcut commands, achieving efficient collaboration of 1+1>2.
Real-Time Exoskeleton Controller Manipulation
Paired with the myController S570 exoskeleton controller, it achieves 1:1 motion replication for precise control. This frees robot movements from the constraints of code, making actions smoother and more fluid. It meets the needs of various scenarios, such as embodied intelligence data collection and remote robot operation.
Expands Unlimited Scenarios
Education
Scientific Research
Commercial
📊 Technical Specifications — Mercury X1
| Feature | Specification |
|---|---|
| Product Model | Mercury X1 |
| Product Size | 1.18 m |
| Working Voltage | 24 V |
| Degrees of Freedom | 19 DOF |
| Maximum Battery Life | 8 hours |
| Maximum Load | 1 kg |
| Net Weight | 20 kg |
| Repeatability | ± 0.05 mm |
| Drive Motor | High-performance Direct Drive Motors |
| Maximum Operating Speed | 1.2 m/s |
| Maximum Climbing Angle | 15° |
| Storage Space | 15 L |
| Master Module CPU/GPU | 6-Core Arm v8.2 64-bit CPU + 384-Core Volta™ GPU |
| Master AI Performance | 21 TOPS |
| Secondary CPU | 4-Core ARM Cortex-A57 CPU |
| Wheeled Chassis Master | 128 NVIDIA CUDA® Cores |
| Screen | 9-inch Touchscreen |
| Mobile Chassis Sensors | LIDAR, Ultrasonic Radar, 2D Vision |
| 3D Camera | Orbbec Deeyea |
| Microphone | Line Array (4 microphones), 5 m / 180° pickup |
| I/O | 24 V — 6 Inputs, 6 Outputs |
| Communication | CAN Bus / Wi-Fi / Network Port / Bluetooth / USB Serial Port |
