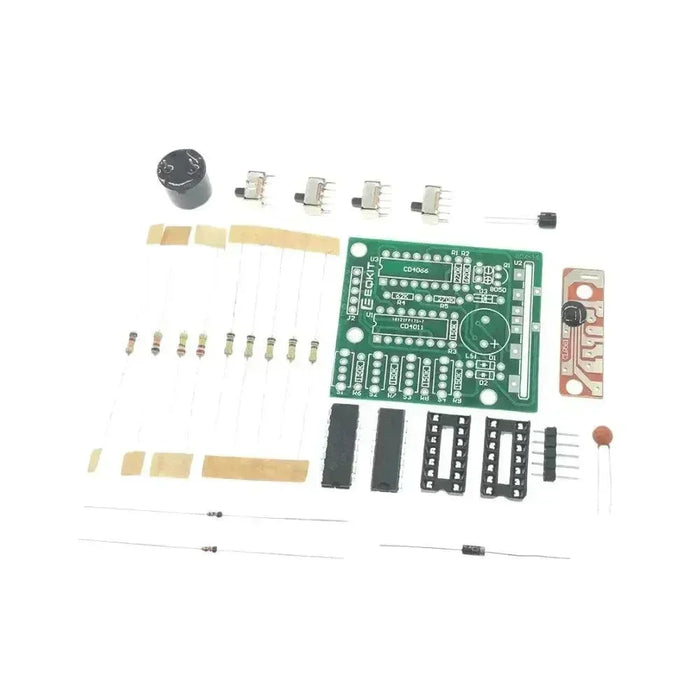

Unleash your creativity with the 16-Tone Music Box DIY Kit! This engaging kit lets you build a unique electronic music box capable of playing a variety of tones. Perfect for beginners and DIY enthusiasts, it offers a hands-on learning experience by combining electronics with musical expression.
Parameters
Kit Name: 16-Tone Music Box
Model: BOX-16
Operating Voltage: 4.5–5V
PCB Dimensions: 48mm (L) x 42mm (W)
Control Method: Manual Encoding + External Encoding
The 16-Tone Music Box allows you to generate 16 fun sound effects under your control, making it both a creative electronic toy and a useful tool for alarms or notifications.
Sound Effect Encoding Table
| Code | Sound Effect | Code | Sound Effect |
|---|---|---|---|
| 0 0 0 0 | Whimsical electronic | 1 0 0 0 | Insect sound |
| 0 0 0 1 | Machine gun sound | 1 0 0 1 | Train whistle |
| 0 0 1 0 | Car horn | 1 0 1 0 | Phone ring |
| 0 0 1 1 | Ambulance siren | 1 0 1 1 | Bird chirping |
| 0 1 0 0 | Police siren | 1 1 0 0 | Machine gun |
| 0 1 0 1 | Buzzer | 1 1 0 1 | Whistle |
| 0 1 1 0 | Alarm sound | 1 1 1 0 | Low-frequency horn |
| 0 1 1 1 | Electronic beep | 1 1 1 1 | Racecar sound |
With this encoding system, you can freely experiment with different sounds for entertainment or practical purposes like alerts and alarms.
