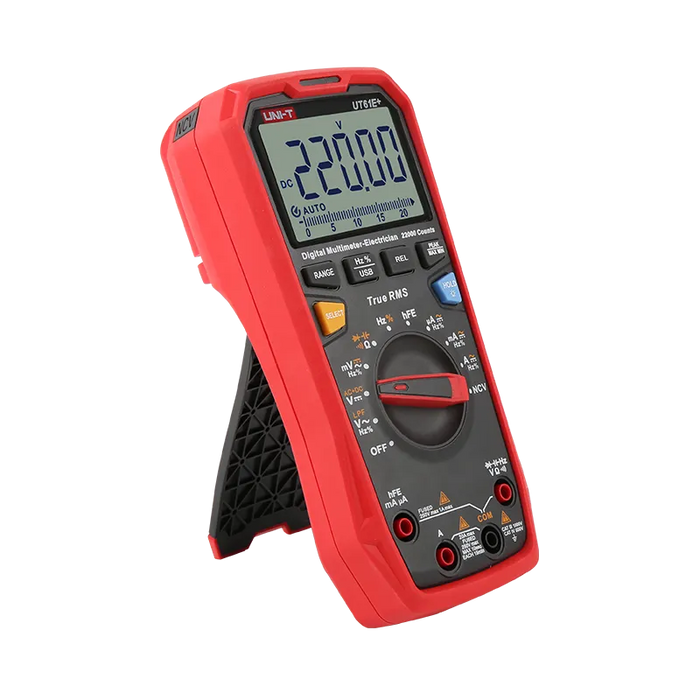

The UT61E+ is a stable, high-reliability handheld true RMS digital multimeter designed for precise measurements across a wide range of electrical parameters. It supports AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, transistor testing, and circuit continuity. It also features professional NCV measurement to quickly and accurately distinguish live and neutral lines. In addition, the entire series offers audible and visual alerts, high-current overheat alarms, and an automatic USB communication module sensing function for intuitive and rapid result acquisition with enhanced safety. A backlight keeps the device usable during power outages. The dual-color enclosure is stylish, sturdy, and durable, making UT61E+ an ideal measurement tool for professionals.
Key Features
- True RMS, 22000 display
- 1000 V DC/AC voltage measurement
- 20 A AC/DC current measurement
- Online frequency measurement for AC voltage and current ranges (high voltage)
- 220 mF large capacitance measurement
- ACV + DCV measurement
- Transistor testing
- Peak Hold
- Low-pass filter (LPF)
- 220 MΩ resistance measurement
- NCV measurement
- Buzzer and light alarms
- High-current overheat alarm
- USB data transmission
- Bluetooth accessory (optional)
- CAT III 1000 V / CAT IV 600 V safety rating
Specifications
| AC Voltage (V) | 220 mV / 2.2 V / 22 V / 220 V / 1000 V | ±(0.8% + 10) |
| AC Current (A) | 220 μA / 2.2 mA / 22 mA / 220 mA / 20 A | ±(0.8% + 10) |
| DC Voltage (V) | 220 mV / 2.2 V / 22 V / 220 V / 1000 V | ±(0.05% + 5) |
| DC Current (A) | 220 μA / 2.2 mA / 22 mA / 220 mA / 20 A | ±(0.5% + 10) |
| Resistance (Ω) | 220 Ω / 2.2 kΩ / 22 kΩ / 220 kΩ / 2.2 MΩ / 22 MΩ / 220 MΩ | ±(0.5% + 10) |
| Capacitance (F) | 22 nF / 220 nF / 2.2 μF / 22 μF / 220 μF / 2.2 mF / 22 mF / 220 mF | ±(3.0% + 5) |
| Frequency (Hz) | 10 Hz ~ 220 MHz | ±(0.01% + 5) |
| Duty Cycle (%) | 0.1% ~ 99.9% | ±(2.0% + 5) |
Additional Features
- Display: 22000 counts
- Auto/Manual ranging
- True RMS: Yes
- Response: 40 ~ 10 kHz
- LPF: Yes
- ACV + DCV: Yes
- Duty Cycle: 0.1% ~ 99.9%
- NCV: >100 V
- Diode and Transistor testing: Yes
- Auto Power Off: ~15 minutes
- Continuity test: audible buzzer for < 50 Ω, silent for ≥ 70 Ω
- Low Battery indicator
- Data Hold / Relative mode
- Max/Min, Peak values
- USB data transmission
- LCD backlight
- 46-segment analog bar
- Input protection
- Input impedance ≥ 10 MΩ
- Power: 1.5 V AAA x4
- Color: Red + Gray
- Dimensions: 190 mm x 90 mm x 50 mm; Weight: 350 g
- Standard accessories: Batteries, test leads, USB adapter, plug adapter
- Optional Bluetooth accessory
Notes
Product is designed for professional electrical testing across a broad range of applications, combining safety, accuracy, and ease of use with practical features like backlight and USB connectivity.
