Features
Pixels: 5 megapixel
Resolution: 2592x1944

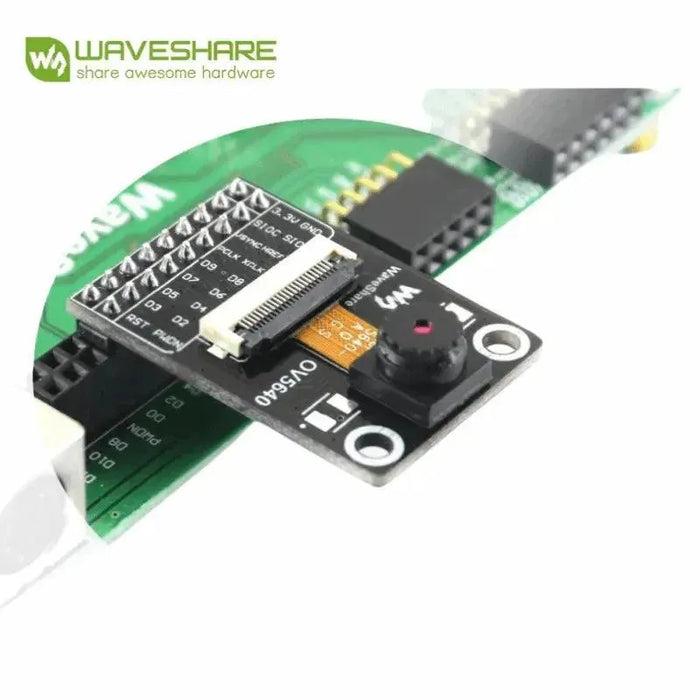

Sensor: OV5640
1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
Supports image scaling, panning, windowing, etc.
Lens:
CCD size: 1/4inch
Aperture (F): 2.8
Focal Length: 2.8mm
Diagonal: 63 degree
Output Formats:
YUV(422/420)/YCbCr422
RGB565/555/444
CCIR656
RAW RGB
Compressed Data
Operating Voltage: 3.3V
Control Interface: SCCB (I2C compatible)
Data Interface: DVP 8-bit
Dimension: 35.70mm × 23.90mm
