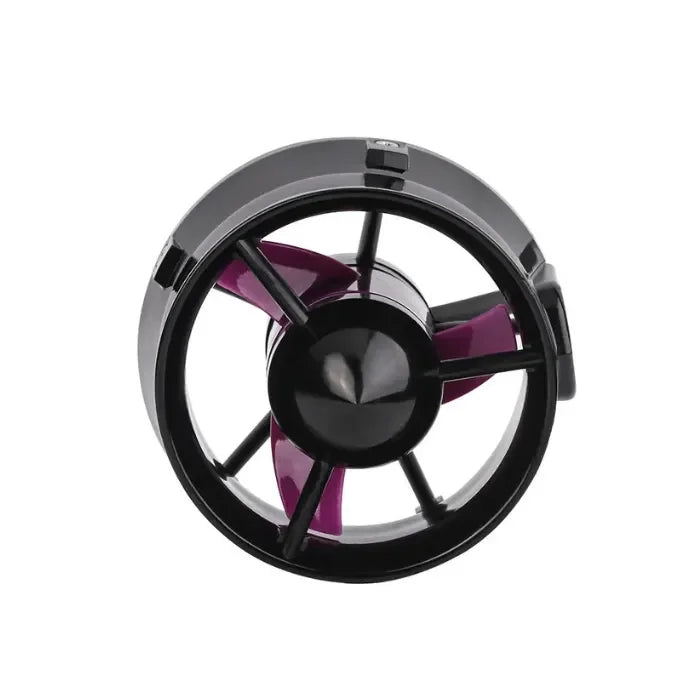

CubeMars W30 Underwater Thruster is a high-performance underwater propulsion system designed for marine environments. With its corrosion-resistant construction and efficient design, the W30 is ideal for various applications, including underwater robots, unmanned vessels, and surfboards.
Key Features
-
Corrosion-Resistant Design: Built to withstand harsh marine environments, the W30 thruster features a special anti-corrosion coating on the magnets and uses sealing resin for the winding, ensuring stable performance during water cooling.
-
High-Strength Materials: The steer axle and body screws are made from high-grade stainless steel, enhancing resistance to corrosion and prolonging the device's lifespan.
-
Advanced Bearing System: The W30 utilizes imported self-lubricating bushings, allowing for natural pressure resistance and enabling a maximum diving depth of 200 meters.
-
Robust Structure: Constructed with durable PC plastic, the thruster is designed to handle high pressure while maintaining a streamlined shape for optimal thrust performance.
-
Powerful Thrust: The W30 produces a forward thrust ranging from 6.7 kgf to 7.7 kgf and a reverse thrust between 5.0 kgf and 5.8 kgf, making it a versatile choice for various underwater tasks.
Specifications
- Dimensions: Ф100 x 108 mm
- Rated Power: 480W
- Rated Current: 22A
- Weight (Air): 420g
- Weight (Water): 200g
- Effective Diving Depth: 200m
- Recommended Battery: 6S (single cell 4.2V)
- Cable Specification/Length: 18AWG / 1000 mm
Applications
The CubeMars W30 Underwater Thruster is perfect for a wide range of applications, such as:
- Underwater robotics
- Unmanned surface vehicles (USVs)
- Surfboards and personal watercraft
