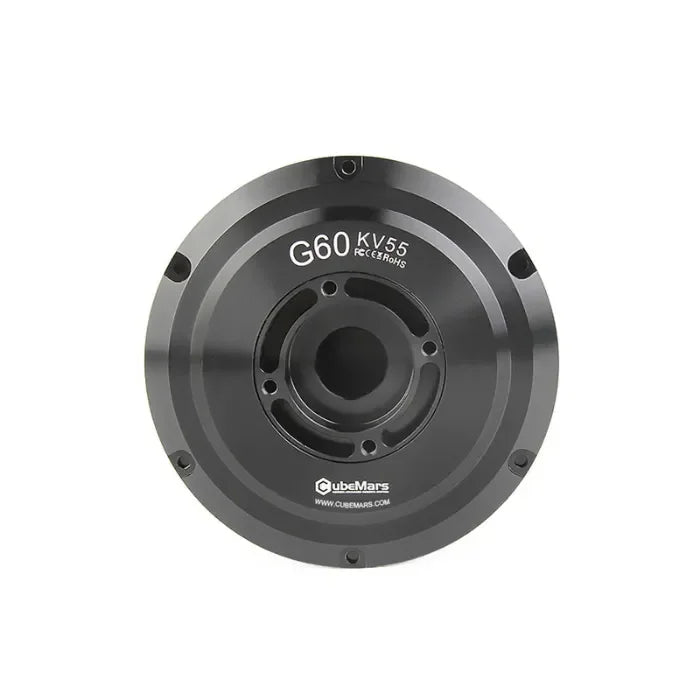

⚙️ CubeMars G60 (KV25/KV55) BLDC Gimbal Motor Encoder
Precision Motion for Demanding Applications
The CubeMars G60 is a compact yet powerful BLDC gimbal motor designed to deliver advanced stability and responsive control in low-speed environments. Whether you're building a high-end gimbal system 🎥, an autonomous platform 🤖, or a precision pan-tilt mechanism 🛰️, this motor offers the performance and reliability professionals demand.
Its KV25/KV55 variants allow you to fine-tune speed-torque balance for your specific application. The large central through-hole simplifies integration with slip rings and wiring harnesses 🧵, while the high slot-fill factor boosts torque density and thermal efficiency 🔥. With a resolution of 0.01°, low cogging torque, and IP-rated protection 🛡️, the G60 is built to perform in rugged, high-precision environments.
🌟Features
-
🕳️ Central Through-Hole Design – Enables seamless wiring and slip ring integration
-
🧲 High Slot-Fill Factor – Improves magnetic efficiency and torque output
-
🎛️ Multiple Control Modes – Supports both speed and position control for flexible operation
-
🧠 High Precision Encoder – Delivers angular resolution of 0.01° for ultra-smooth motion
-
🌧️ Waterproof & Dustproof – Built to withstand harsh conditions and outdoor use
-
🔧 Compact & Lightweight – Ideal for payload-sensitive systems and mobile platforms
📊 Technical Specifications
| Attribute | Value |
|---|---|
| ⚖️ Motor Weight | 472g |
| 🔋 Rated Voltage | 24V |
| 🔌 Rated Current | 3.1A |
| 🌀 Rated Torque | 0.6Nm |
| 🚀 Rated Speed | 850rpm |
| 🆓 Max No-Load Speed | 1150rpm |
| 🛑 Stall/Peak Torque | 1.75Nm |
🎯 Applications
Perfect for:
-
🎥 Gimbal Stabilization – Achieve cinematic smoothness in aerial and handheld rigs
-
📸 Aerial Photography – Maintain precise orientation during flight
-
🚗 Autonomous Systems – Integrate into steering, sensor alignment, or lidar positioning
-
🦾 Robotic Arms – Enable fine motor control in industrial or service robots
-
🛰️ Pan-Tilt Platforms – Ideal for satellite tracking, surveillance, and remote sensing
✅ Why Choose CubeMars G60 (KV25/KV55)?
-
⚡ Energy-Efficient Design – Low power draw with high torque output
-
🔄 Flexible KV Options – KV25 for torque-heavy tasks, KV55 for faster response
-
🛡️ Durable & Reliable – IP-rated protection for long-term outdoor use
-
🧩 Easy Integration – Through-hole and compact form factor simplify system design
-
🧠 Precision Control – Ideal for applications requiring smooth, accurate motion
